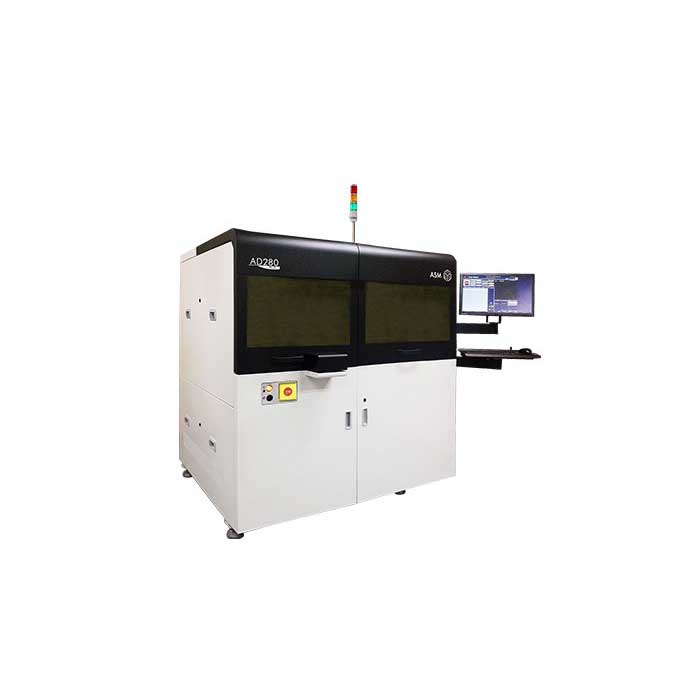

The ASMPT AD280 Plus is a high-precision fully automatic die bonding platform designed for semiconductor packaging processes where alignment accuracy directly impacts device performance.
Unlike high-volume production bonders optimized purely for throughput, this system focuses on micron-level placement stability, advanced vision alignment, and controlled bonding force for sensitive optoelectronic and sensor devices.
It is widely used in OSAT and IDM environments handling high-mix, precision-driven semiconductor products requiring consistent yield under tight mechanical tolerances.
System Overview: What Makes ASMPT AD280 Plus Different?
The ASMPT AD280 Plus is a fully automatic precision die attach machine used in advanced semiconductor backend assembly.
It is designed to place silicon dies, MEMS structures, and optical components onto substrates or leadframes using precision epoxy dispensing or eutectic bonding processes.
The platform is optimized for applications where positional deviation, tilt, or bond force variation can significantly impact optical or electrical performance.
Manufacturing Position in Semiconductor Packaging
The AD280 Plus is positioned between standard high-speed die bonders and advanced sub-micron flip chip systems.
It is specifically designed for precision-driven packaging processes that require tighter tolerances than mainstream epoxy bonding equipment but do not require full flip chip complexity.
Where the ASMPT AD280 Plus Is Used
This system is commonly deployed in specialized semiconductor manufacturing fields:
Optoelectronic and Imaging Systems
CMOS image sensors with critical alignment requirements
VCSEL and photonic communication devices
High-precision LED and micro-optical assemblies
MEMS and Precision Sensors
MEMS inertial sensors and gyroscopes
Medical diagnostic and bio-sensing chips
Automotive-grade sensing modules
RF and Advanced Discrete Devices
RF front-end components using eutectic bonding
High-reliability power discretes
Mixed-signal IC packaging requiring controlled placement
Competitive Positioning in Die Bonding Equipment Market
The ASMPT AD280 Plus is positioned as a precision-focused die attach platform for high-value semiconductor applications.
Compared to high-volume epoxy bonders: delivers significantly improved alignment accuracy and bond force control for sensitive devices
Compared to flip chip systems: offers lower system complexity while maintaining strong precision for non-ultra-fine-pitch applications
Compared to older precision platforms: improved vision algorithms and motion stability enhance yield consistency in high-mix production environments
Core Technical Capabilities
Advanced Vision Alignment System: High-resolution optical inspection enables repeatable micron-level placement accuracy even on reflective or small die structures.
Closed-Loop Force Control: Ensures stable bonding pressure, reducing die cracking and improving interconnect reliability.
Dual-Process Flexibility: Supports precision epoxy die attach and eutectic bonding through modular process configurations.
High-Stability Material Handling: Designed for thin wafers and fragile components with minimized mechanical stress during transfer.
Technical Specifications (Typical Configuration)
Performance values vary depending on process setup, tooling, and substrate type.
| Parameter | Typical Description |
|---|---|
| System Type | Fully automatic high-precision die bonder |
| Placement Accuracy | ±3 μm to ±5 μm @ 3σ (process dependent) |
| Supported Processes | Precision epoxy die attach / eutectic bonding |
| Wafer Size Support | 8-inch / 12-inch (configuration dependent) |
| Substrate Types | Leadframes, laminated substrates, strip carriers |
| Throughput | Dependent on alignment complexity and bonding recipe |
Why Manufacturers Choose ASMPT AD280 Plus
Improves yield performance in optical and sensor-sensitive applications
Supports high-mix semiconductor production environments
Reduces defect rates caused by misalignment and force variation
Provides a balanced solution between cost, precision, and process flexibility
Semiconductor Backend Integration Flow
Wafer dicing → Precision die attach (AD280 Plus) → Wire bonding / Flip chip → Encapsulation → Singulation → Final testing
Frequently Asked Questions
What is ASMPT AD280 Plus mainly used for?
It is used for high-precision die attach in semiconductor packaging, particularly for optoelectronics, MEMS, and imaging devices requiring micron-level alignment stability.
How is it different from standard die bonding machines?
It provides significantly higher alignment precision and force control, making it suitable for sensitive devices where standard high-volume bonders may introduce yield loss.
Does it support eutectic bonding?
Yes, eutectic bonding is supported through optional process modules, including specific tooling and controlled atmosphere configurations.
Summary
The ASMPT AD280 Plus is a high-precision die bonding system designed for advanced semiconductor packaging applications requiring tight alignment control and stable process performance.
It is widely adopted in optoelectronics, MEMS, and sensor manufacturing where accuracy and repeatability are critical to final device performance.
