A wafer mounter applies dicing tape or protective tape to a semiconductor wafer and, when required, a dicing frame. The machine supports the wafer before cutting or protects its patterned surface before backgrinding, helping control bubbles, wrinkles, alignment and wafer damage.
Start with the process conditions rather than the machine brand. These three details quickly narrow whether you need a dicing tape mounter, a backgrinding tape laminator, a roller system or a vacuum and non-contact wafer mounting solution.
Confirm whether the wafer is being protected before backgrinding or mounted to a frame before dicing.
Thin, bowed, bumped, MEMS, TAIKO, SiC or GaN wafers may require different chuck and pressure control.
Specify tape format, frame size, manual or automatic loading, cassette handling and recipe requirements.
The same equipment name can describe two different taping jobs. Identify where the tape is applied and what happens next before comparing brands, automation levels or machine specifications.
The machine applies dicing tape to a frame and mounts the wafer backside onto the tape. The mounted wafer then moves to a dicing saw, laser singulation system or another cutting process.
A backgrinding tape laminator applies protective tape to the patterned wafer surface. The tape protects devices and surface structures while the wafer backside is ground or thinned.
Browse current wafer tape mounting and lamination equipment. Open a product page to review the model direction, then contact us to confirm whether the actual machine is configured for dicing tape, backgrinding protection tape, roller mounting, vacuum mounting or another process.
Need a model that is not listed? Send the manufacturer and full model number. We can also review project sourcing for manual, semi-automatic, fully automatic and vacuum wafer mounters.
Explore SINTAIKE STK-6020 semiconductor wafer mounter for back grinding preparation. Learn wafer tape lamination technol...
Explore SINTAIKE STK-7080 semiconductor wafer mounter with non-contact vacuum lamination technology. Designed for thin w...
Learn about Nitto DR8500III semiconductor wafer mounter for 200mm wafer protection tape application. Explore features, s...

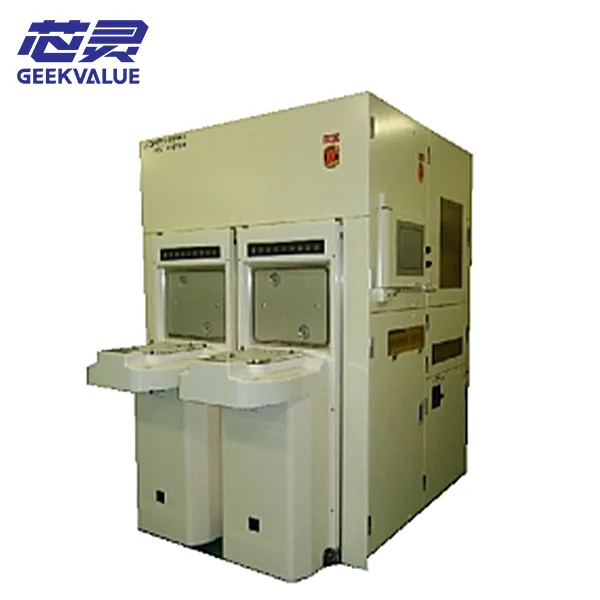

Learn about Nitto DR3000III semiconductor wafer mounter technology, wafer mounting process, UV tape applications, specif...
Search results and manufacturer lineups commonly separate wafer mounters by automation level. The right choice depends on production volume, wafer handling risk, recipe control and how much operator involvement is acceptable.
Automatic systems can load wafers and frames, align the workpiece, mount tape, cut or use pre-cut tape, inspect the result and return the mounted wafer to a cassette or magazine. They are selected when repeatability, throughput, recipe control and reduced manual handling are priorities.
Manual wafer mounters are often used in laboratories, pilot lines, repair environments and lower-volume production. The operator loads the wafer, frame and tape and controls more of the mounting and cutting process.
Semi-automatic systems typically retain manual loading while automating tape feed, lamination, pressure control, cutting or selected alignment steps. They suit plants that need better consistency without a full cassette-to-cassette system.
Standard roller mounting is common, but the wafer surface, thickness and shape may require a different method. Vacuum and reduced-contact systems are used when direct pressure, trapped air or surface contact creates additional risk.
Suitable for many conventional wafers when controlled pressure can apply tape evenly without damaging the surface.
Vacuum mounting can improve air removal and uniformity while reducing direct roller contact on sensitive structures.
Ultra-thin wafers and TAIKO profiles may require special support, fewer transfer steps and controlled edge handling.
Bumps, MEMS structures, backside features or fragile materials can require non-contact chucks and dedicated recipes.
A useful quotation starts with the process, not only the model name. Share what you already know and we can help confirm the machine type, mounting method and actual equipment configuration.
Dicing preparation, backgrinding protection, remounting or another tape process.
It determines which side receives tape and whether a dicing frame is involved.
Diameter, thickness, material, TAIKO profile, bow, bumps, frame size and frame standard.
These details affect chuck design, alignment, pressure and handling.
Blue tape, UV tape, BG tape, DAF, roll or pre-cut format, roller or vacuum mounting.
Tape width, adhesive behavior, cutting and air removal must match the equipment.
Manual, semi-auto or full-auto operation, preferred condition, quantity and destination.
It defines the handling system, installed options, sourcing route and quotation scope.
These links help customers move from wafer taping to the surrounding process instead of treating the wafer mounter as an isolated machine.
Review wafer thinning equipment when protective tape is applied before backside grinding.
Explore Wafer Grinders → Dicing routeContinue to wafer cutting equipment when the mounted wafer is prepared for blade singulation.
Explore Dicing Saws → Surface conditionReview cleaning equipment when particles, residues or surface contamination could affect tape adhesion.
Explore Wafer Cleaners → Further readingUse the guide library for deeper information about thinning, dicing, cleaning and connected wafer processes.
Read Semiconductor Guides →The answers below cover the topics that repeatedly appear across manufacturer pages and buyer searches.
A wafer mounter applies processing tape to a wafer or mounts a wafer onto tape held by a dicing frame. It is commonly used before wafer dicing or before backgrinding, depending on the machine type.
The terms often overlap. Some suppliers use wafer laminator for protection-tape application, while wafer mounter often refers to mounting a wafer to dicing tape and a frame. The tape side and next process are more reliable than the product name alone.
Manual systems favor flexibility, low volume and lower operator-to-machine complexity. Fully automatic systems favor repeatability, throughput, cassette handling and recipe control. Semi-automatic machines sit between these two approaches.
Vacuum or non-contact mounting may be considered for thin, bowed, bumped, structured or fragile wafers where roller pressure, surface contact or trapped air creates additional risk.
Some systems support multiple tape processes or options, but this should never be assumed. Chuck design, tape path, cutting method, frame handling and software must be checked for the actual model and configuration.
Send the target process, wafer material and diameter, thickness and surface condition, tape type, frame size, mounting method, automation level, preferred machine condition, quantity and destination.
Send the target model or describe the wafer, tape, frame and next process. We will help review the suitable mounting method, available equipment and actual machine configuration.
